All-weather Transformer Oil Extraction And Analysis Robot

37 Views

◆ Millimeter-level positioning, automatic obstacle avoidance with path planning, supports 4-hour wireless fast charging, and offers an 8-hour battery life.
◆ With 6 degrees of freedom and a load capacity of 5kg, it ensures micron-level positioning accuracy and IP5X dust resistance.
◆ Boasts high sensitivity, with a C2H2 detection accuracy of 0.05 µL/L and an H2 detection accuracy of 2 µL/L. Additionally, it demonstrates high efficiency through 3-channel synchronous degassing, enabling the detection of 9 components within 30 minutes.

Get a Quote

Description

Technical Specifications

Operating parameters

Item	Specification
Output Power	1kW
Power Supply Voltage	48VDC
Gradability	30°
Speed Range	0-5Km/h
Robot Weight	300kg
Size	1700mm850mm1600mm
Work Efficiency	All-weather continuous operation exceeding 8 hours
Road Surface Requirements	Generally flat, free from obstacles exceeding 20mm in height
Contact Method	WiFi
Usage Environment	-10~+60℃ ＜80%RH

Standard measurement error limit

Detecting parameters	Minimum Measurement Error/Accuracy For Low Concentration
C2H2	0.05µL/L
CH4	0.1µL/L
C2H6 、C2H4	0.3µL/L
CO2	25µL/L
CO	25µL/L
H2	2µL/L
O2	5%RD
N2	5%RD

1.Gas concentration in oil‌

2.The greater of the measurement error percentage or in μL/L

Authoritative organization certification & testing report

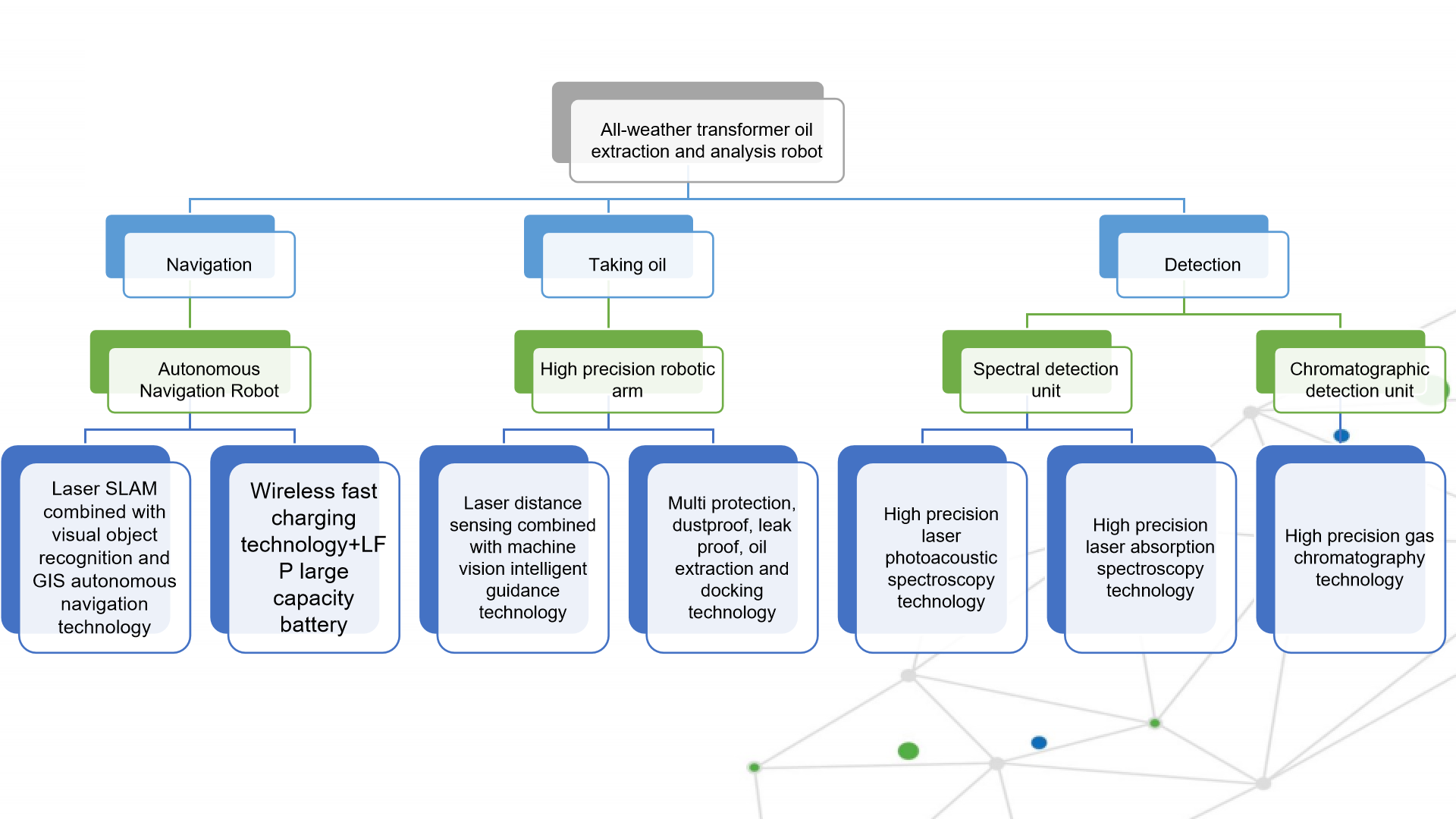

Application Diagram

Related Products

iPDMD-3000

◆ Measures Acetylene (C₂H₂), Ethylene (C₂H₄), Methane (CH₄), Hydrogen (H₂), Carbon Monoxide (CO), Carbon Dioxide (CO₂), Ethane (C₂H₆) and moisture content. A gas collection box gas monitoring module is available as an option to deliver comprehensive real-time monitoring and early warning for large-scale power transformers. ◆ Provides fault early warning and monitoring for oil-immersed transformers, and performs fault analysis and diagnosis by adopting methods including the David Triangle Diagram Method and the Three-Ratio Method.

iDGA-C2000

◆ Narrow-linewidth Semiconductor Lasers Independently developed and manufactured. Specially modulated laser wavelengths prevent cross-interference among multiple gases and improve trace gas detection precision. ◆ Patented Photoacoustic Cell Proprietary sub-ultrasonic resonant photoacoustic cell, compact (5 cm long, 20 g weight), highly responsive and vibration‑free. No moving parts avoids system vibration, extending service life and enhancing reliability. ◆ Custom High-sensitivity Digital Sub-ultrasonic Microphone Operates in the sub-ultrasonic band, less affected by external noise, ensuring stable and accurate system performance

iPDMD-3100

◆ Measures acetylene (C₂H₂) and moisture content. It incorporates three independent detection systems to achieve redundant configuration, providing critical real-time monitoring and early warning for large-scale power transformers. ◆ Designed for relay protection and control of oil-immersed transformers, it can independently perform rapid and automatic detection of dissolved acetylene content in transformer oil, as well as equipment fault analysis, diagnosis and early warning.

iPDMD-6000

◆ Performs full-component detection and is equipped with an additional rapid acetylene detection unit. It can operate normally under extreme conditions including extremely high gas content, carbonization of transformer oil, high temperature and high humidity. ◆ Optimized electromechanical structure, upgraded with reliable flange joints, equipped with additional oil filter and gas filter, improved degassing compensation process, enhanced algorithm adapted to ultra-wide measuring range, and self-calibration by dual photoacoustic cells.
