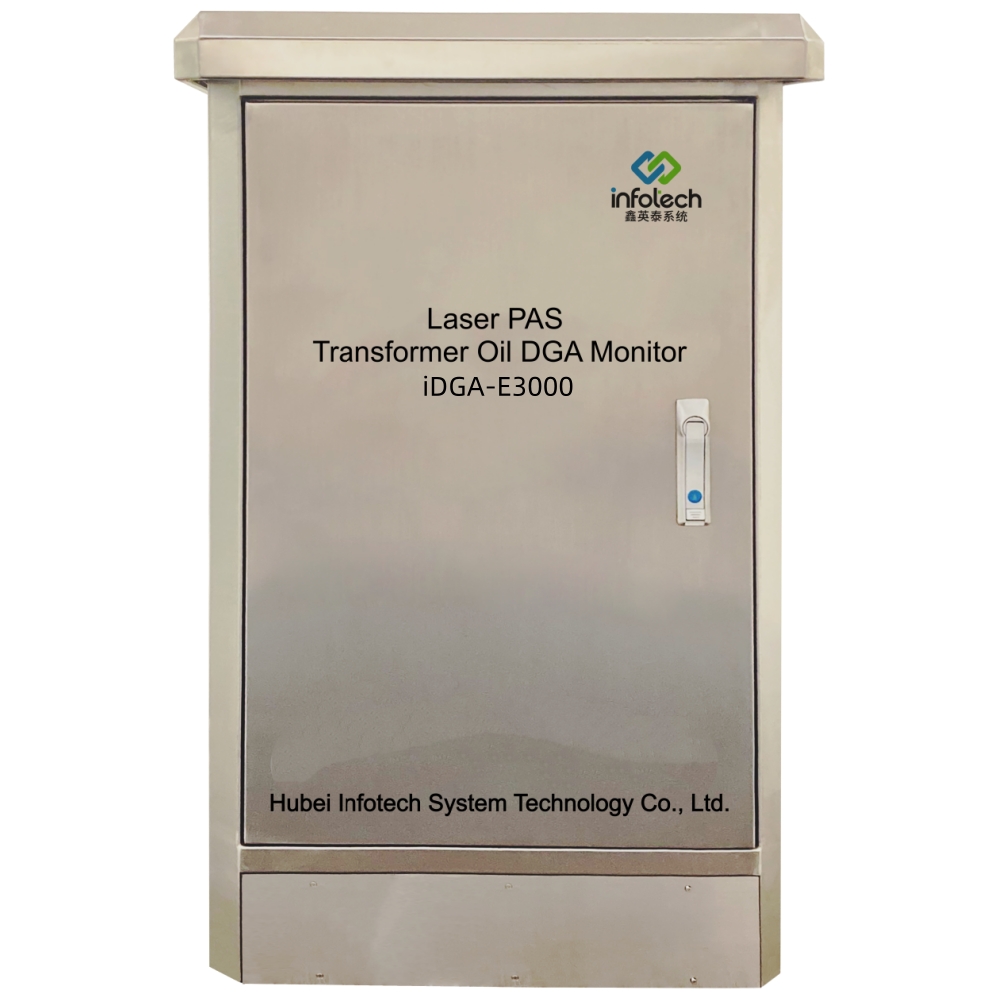

Technical Specifications
Operating parameters
| Item | Specification |
|---|
| Power Input | 220 V AC ±10%, 50 Hz |
| Power Consumption | < 1000 W |
| Weight | < 100 kg |
| Dimensions | 1154 mm (H) × 650 mm (W) × 646 mm (D) |
| Ambient Temperature | -40 ℃ ~ +70 ℃ |
| Ambient Humidity | 10 ~ 95% |
| Measurement Cycle | Min. 1 hour, Max. 24 hours |
| Control Mode | Automatic, menu setting, manual control |
| Communication Interface | RS485 / RJ45 / Optical fiber / 4G wireless |
| Communication Protocol | IEC61850, TCP/IP |
| Altitude | ≤ 5000 m |
| Overvoltage Category | Category IV |
| IP Rating | IP55 |
| Insulation Resistance of External Circuit | ≥ 100 MΩ |
Standard measurement error limit
| Detected Component | Detection Range (μL/L) | Measurement Error Limit |
|---|
| Hydrogen (H₂) | 2 ~ 20 | ±2 μL/L or ±30% |
| 20 ~ 1000 | ±30% |
| Acetylene (C₂H₂) | 0.2 ~ 5 | ±0.2 μL/L or ±30% |
| 5 ~ 10 | ±30% |
| 10 ~ 50 | ±20% |
| Methane (CH₄), Ethane (C₂H₆), Ethylene (C₂H₄) | 0.5 ~ 10 | ±0.5 μL/L or ±30% |
| 10 ~ 150 | ±30% |
| Carbon Monoxide (CO) | 25 ~ 100 | ±25 μL/L or ±30% |
| 100 ~ 1500 | ±30% |
| Carbon Dioxide (CO₂) | 25 ~ 100 | ±25 μL/L or ±30% |
| 100 ~ 7500 | ±30% |
| Total Hydrocarbons (C1+C2) | 2 ~ 10 | ±2 μL/L or ±30% |
| 10 ~ 150 | ±30% |
| 150 ~ 500 | ±20% |
1.Gas concentration in oil
2.The greater of the measurement error percentage or in μL/L
Authoritative organization certification & testing report
Application Diagram
 | 「Meets A-level product standards and has received recognition and praise from industry customers for its application.」
「Assist customers in timely detecting and monitoring transformer fault gases during equipment operation and inspection, early detection and warning, reducing transformer failure rates, and improving safety operation levels.」
「Upgraded products of gas chromatography and traditional photoacoustic spectroscopy, no need for carrier gas, no gas cross interference, high accuracy, and long-term stability of equipment.」
「For more product information, please consult now」 |
|---|
